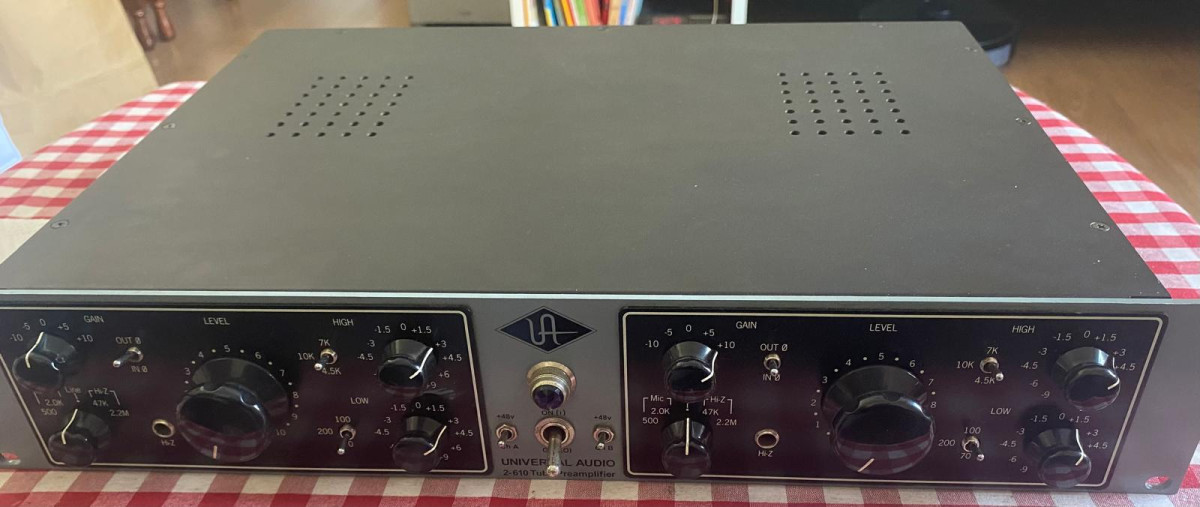

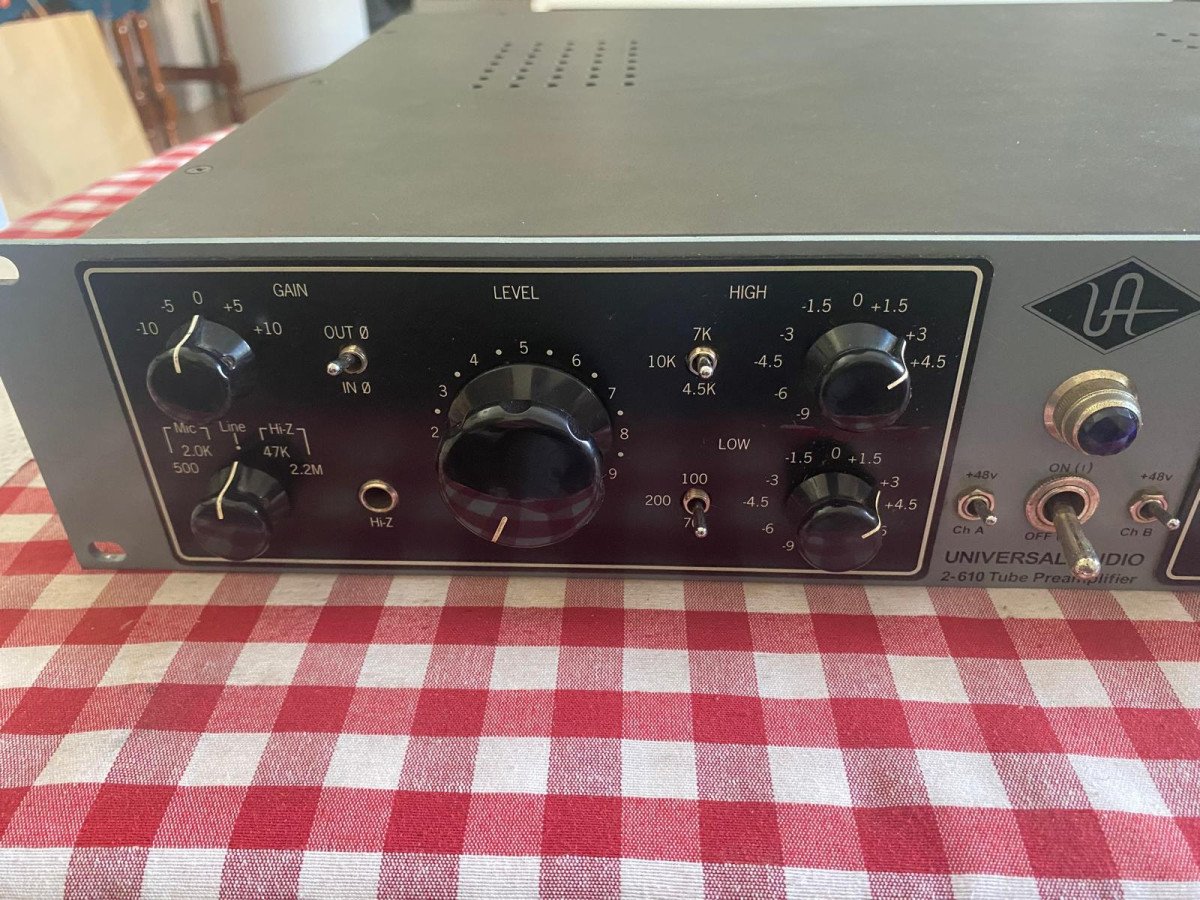

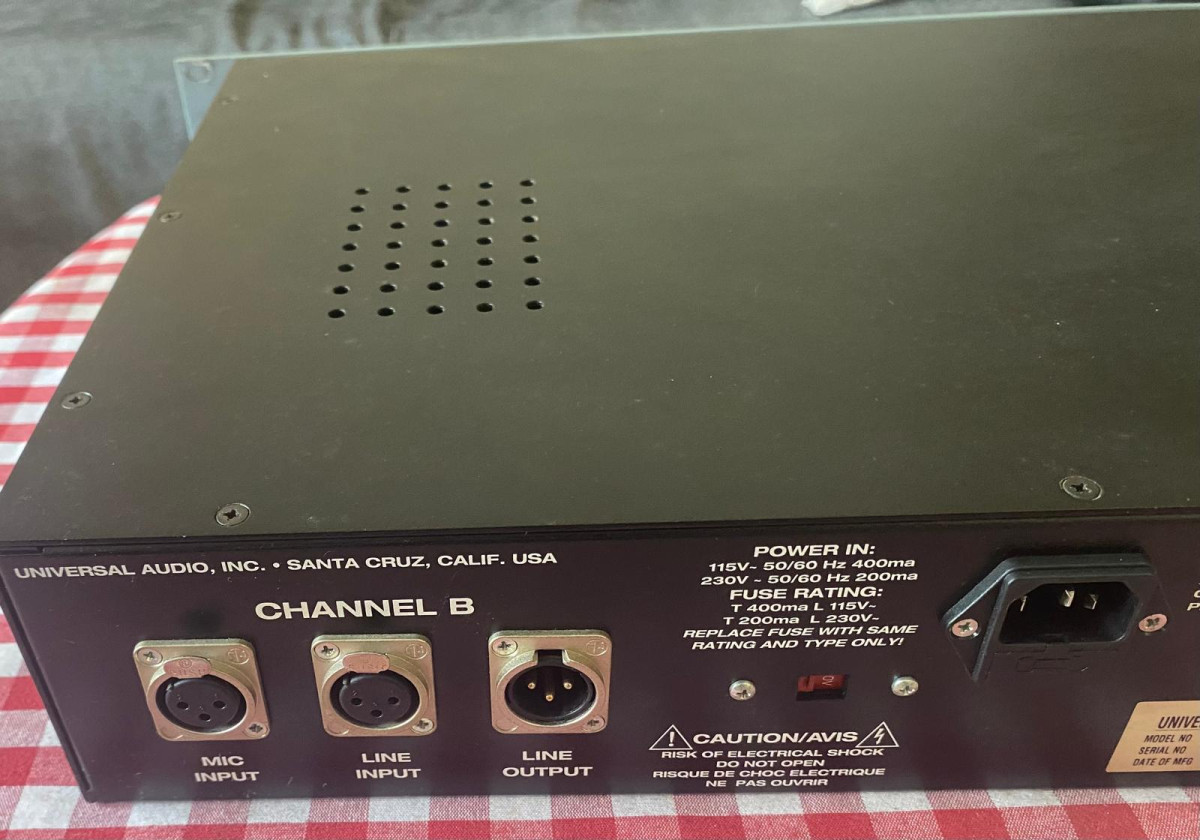

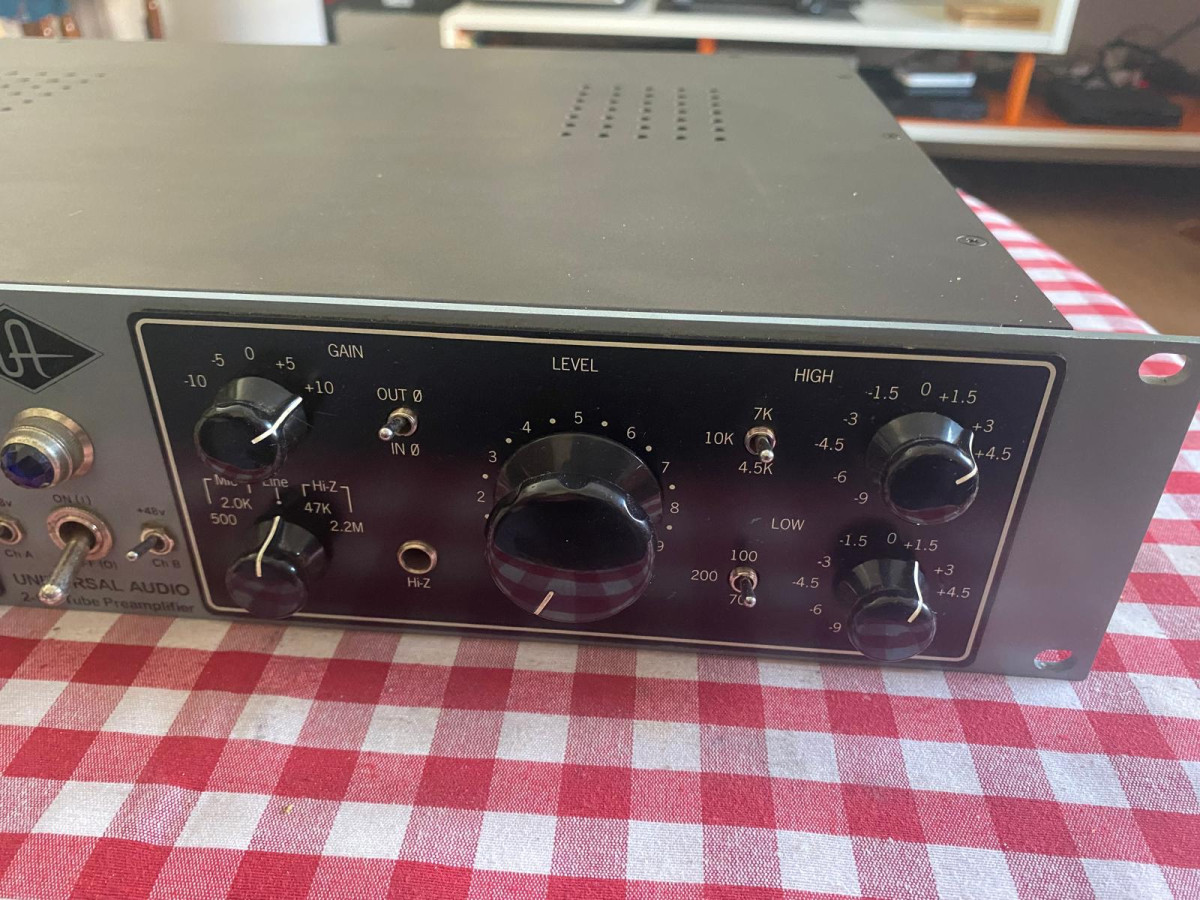

Preamplificador dual Universal Audio 2-610

Pre amplificador de micrófono de dos canales a válvulas basado en la legendaria consola modular de Universal Audio 610

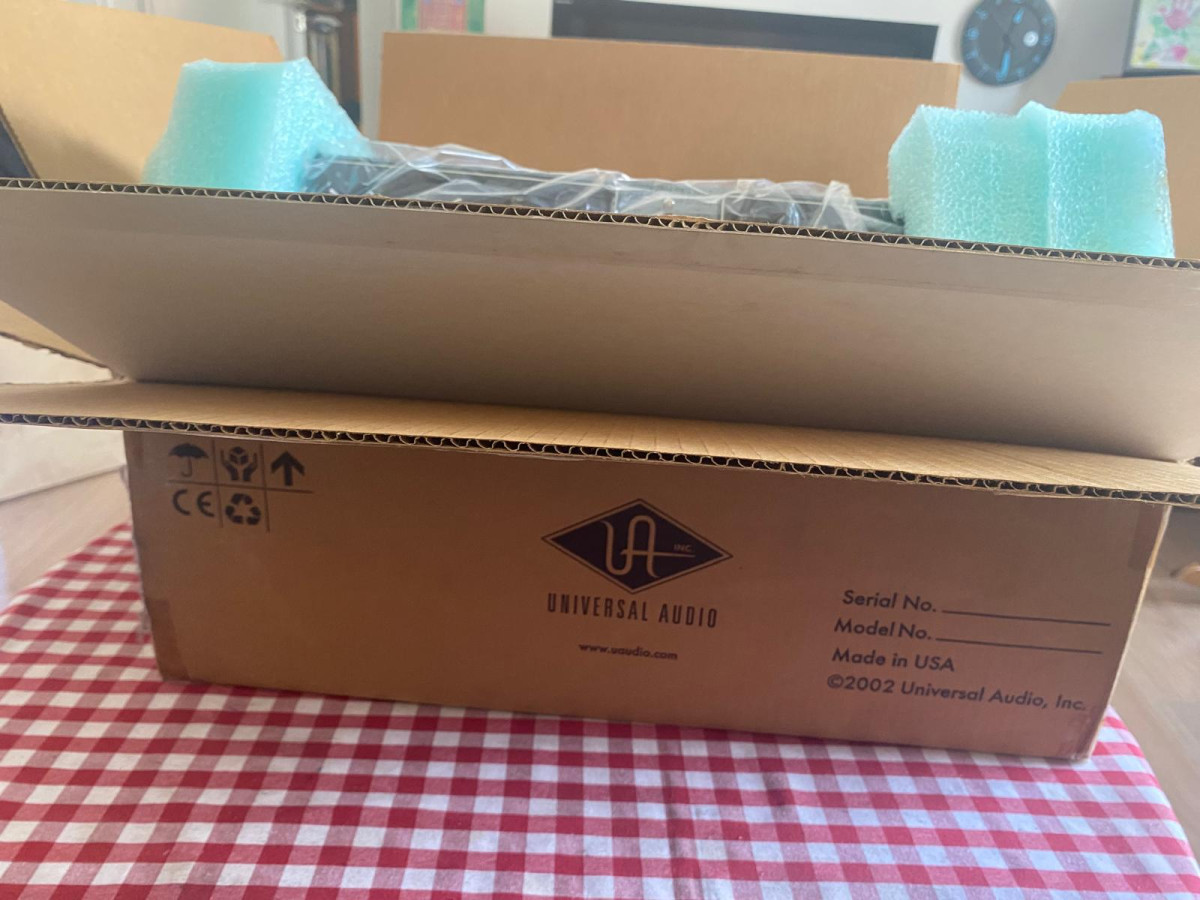

con caja del fabricante.
Válvulas de fabrica con pocas horas de uso.
Rayas en la tapa inferior por el enrracado.


https://www.uaudio.com/2-610.html

https://media.uaudio.com/assetlibrary/2/-/2-610-manual.pdf



2-610 Specifications
Microphone Input Impedance Selectable, 500 or 2k
Balanced Line Input Impedance 13.8 k
Hi-Z Input Impedance Selectable between 2.2 M or 47 k
Maximum Microphone Input Level +3.5 dBu
Maximum Output Level +20 dBm
Internal Output Impedance 60
Recommended Minimum Load 600
Frequency Response 20 Hz to 20 kHz +1 dB
Maximum Gain 61 dB
Signal-to-Noise Ratio Greater than 82 dB
Tube Complement One 12AX7 and one 12AT7 per channel
Power Requirements 115V/230V
Power Consumption 30 watts
Dimensions 19”W x 3.5”H x 12.25”D
2-610 Weight 12.25 lb.
