este es un refrito del mopho tradicional, pero con mas teclas Mopho SE

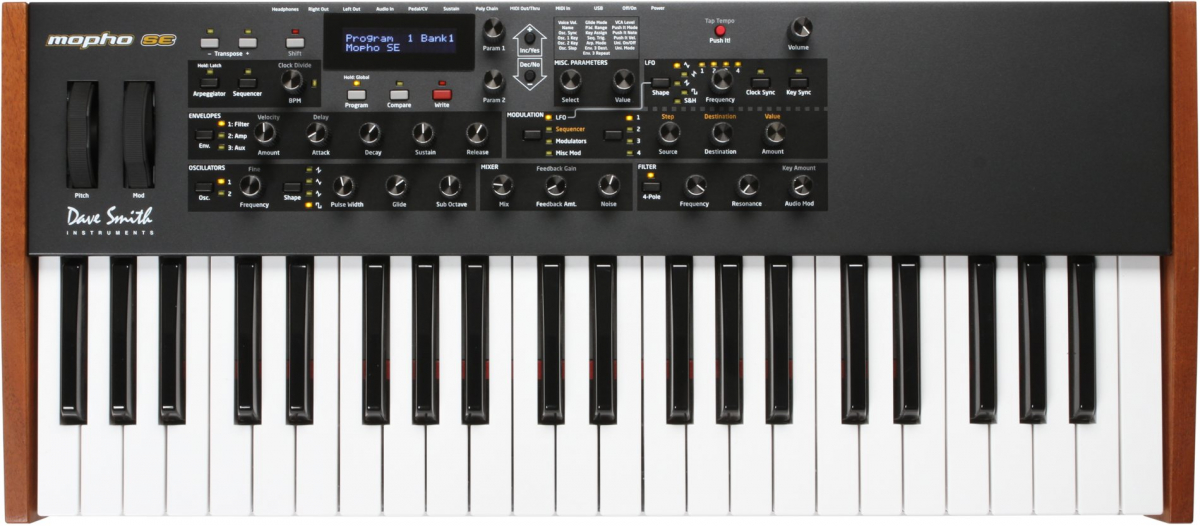

Dave Smith Instruments Mopho SE specs
Synthesizer features
100% analog signal path
Two oscillators capable of producing sawtooth, triangle, saw/triangle, and variable pulse width square waves, with hard sync
Two sub-octave generators (one octave below oscillator 1 and two octaves below oscillator 2)
One classic Curtis low-pass filter (switchable 2- or 4-pole) with audio rate modulation, self-oscillating in 4-pole mode
Analog VCA
Three envelope generators (ADSR plus delay)
Feedback loop with programmable level and gain
White noise generator
4 LFOs
Gated 16 x 4 step sequencer (one sequence per program)
Arpeggiator
Glide (portamento): separate rates per oscillator
Full-sized, 44-note (F to C), semi-weighted keyboard action with velocity and aftertouch
Full-sized modulation wheel and spring-loaded pitch wheel
Fully programmable with 3 banks of 128 user programs (384 total)
I/O
USB type B receptacle
MIDI In, Out/Thru, and Poly Chain
Left and Right audio outputs: 1/4" phone jack (unbalanced)
Audio Input: 1/4" phone jack (unbalanced)
Sustain pedal input (accepts normally on or off momentary footswitch with 1/4" phone plug)
Expression pedal/control voltage (3.3 VDC max.) input (1/4" TRS phone jack)
Headphone output: 1/4" TRS stereo phone jack
Physical specs
Dimensions: approximately 25.2" L x 11.1" W x 3.6" H (64 cm x 28.2 cm x 9.1 cm)
Weight: 13.25 Lbs
Included
Power supply for 100V – 240V AC operation
Operation manual
Free downloadable software editor for Mac OS and Windows
