Esto es lo que estas buscando
, el DX200, es la versión con editor para PC, toda la síntesis FM más filtros digitales y más cosas. Se puede encontrar por unos 250€-300€. Es de lo más moderno en FM en módulo. Saludos!
http://www.vintagesynth.com/yamaha/dx200.shtml

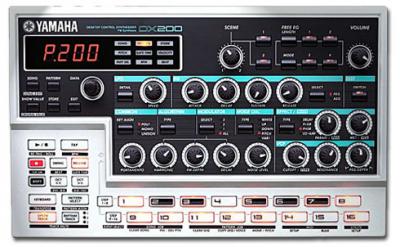

The hot new DX200 is a programmable desktop sequencer with a return to Yamaha's legendary sound of FM synthesis. Based on the classic DX-7, an authentic 6-operator FM (Frequency Modulation) synthesis engine sits at the heart of the DX200, bringing back the famous sounds of the DX-series synthesizers. Taking a few clues from the success of Korg and Roland's desktop sequencing synthesizers, the DX200 is a realtime 16-step sequencer (groove-box) designed for musicians and DJs alike! On top of that, the DX200 is fully compatible with DX-7 System Exclusive MIDI data for downloading DX7 patches into the DX200, and vice-versa!
Specifications
* Polyphony - 16 voices on FM engine, 32 voices on AWM2 sample-playback engine
* Oscillators - MAIN SYNTHESIZER: FM - DX7 compatible, 6 Operator FM, 32 algorithms;
NOISE: 16 variations in 5 categories - white, up, down, pitch, variation;
SUB SYNTHESIZER: AWM2 (Rhythm Section Sounds)
* Filter - MAIN SYNTHESIZER (FM): Filter + (FEG) ADSR env; 12dB, 18dB, 24dB; Low-, high-, band-pass, band-reject
* VCA - AEG: ADSR envelope to control Amp; FREE Envelope Generator: 4 tracks per pattern
* LFO - Speed/Depth control, 6 waveform types: triangle, saw down/up, square, sine, sample-and-hold
* Keyboard - 16 rubber pads
* Effects - 13 types: Distortion, delays, reverb, flangers, chorus, phasers, overdrive
* Sequencer - 16 step sequencer with 4 parts per pattern; 1 track for Synth, 3 tracks for AWM2 drum sounds; 10 songs capacity
* Memory - 256 preset patterns, 128 user patterns; Scene Memory (2 memories per pattern)
* Control - MIDI IN/OUT (1-part multitimbral FM, 3-part multitimbral AWM2), MIDI CLOCK (Int/Ext)
